Product Introduction

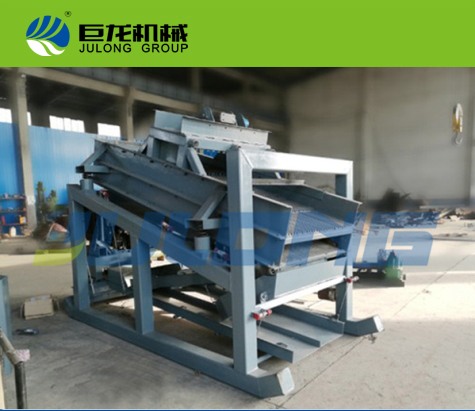

This gold Mining machine is a complete, portable equipment.

Excavator pours the materials on grizzly bar for separation. Gravels will be washed by high pressure water and then discharged from the back part. Raw material particle size can reach 50cm. Smaller particles fall to the second layer of screen for separation.

After the second layer, the sand and water mixture flows into three separate and adjustable sluices for gold enrichment. This sluice can be adjusted for the front and rear angles, left and right balance to achieve maximum recovery rate by adapting to different terrain and operating conditions.

This gold processing machine is easy to operate and efficient. The gold mat can be taken down quickly for flushing.

This machine can be cleaned easily and quickly, gold mat can be removed to flush quickly.

Driving System：

The machine is fully driven by hydraulic system. The system is driven directly by hydraulic motor. No belt or chain is required. This means that a lot of driving mechanism is not necessary. Hydraulic system can reduce fuel consumption and mechanical loss.
