Products Description:

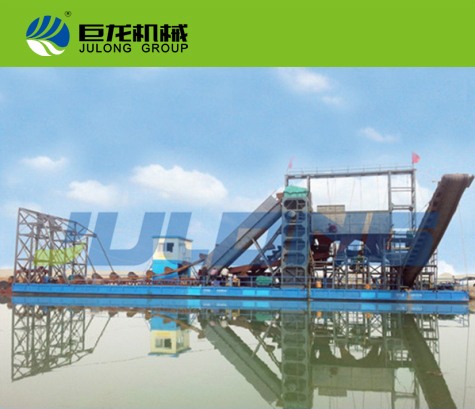

The dredger is non-self-propelled chain type dredger. The dredger body is transverse frame box type pontoons with modular design.

The dredger is composed of positioning anchors, driving system, lifting ladder system, conveying device etc. The ladder is lifted up and down by the winches and the will excavate the materials under water and discharged to the bank by conveyors.

The conveyor belts can be towards both left and right sides according to the project need and for higher efficiency.

All the device can be driven by electric motor and the operation can be done in the operation cabin.

Processing capacity: 200 cubic meters per hour.

Feeding size: < 10 cm.

Dredging depth: >6m.

Overall dimension:

–Overall length: 20m –Overall width: 6.5m

–Overall height: 1.2m –Displacement: 49 T

Delivery time: About 4-5 weeks.
